Carbon Fiber Folding Balancing Arm
下载资料

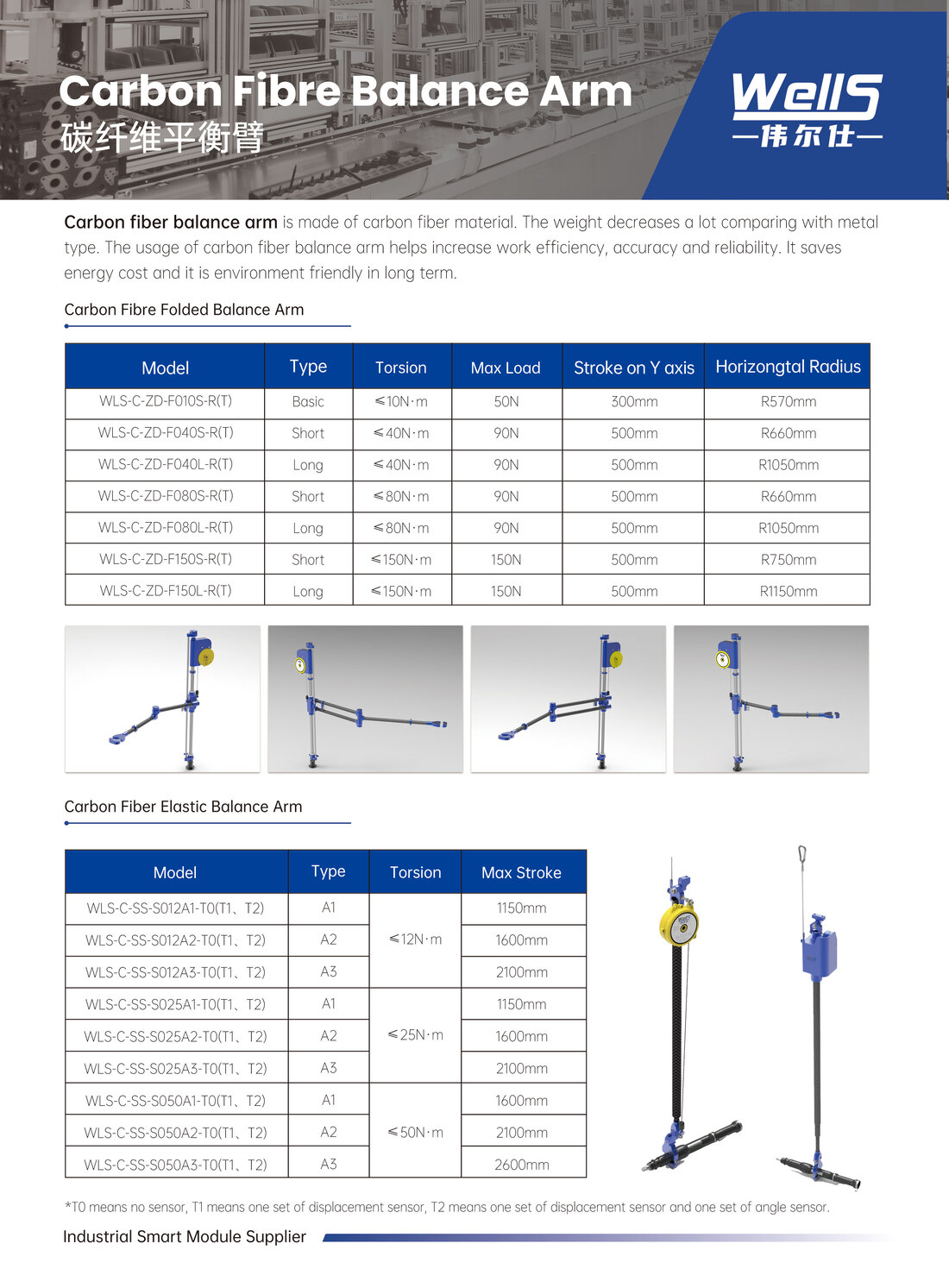

Carbon Fibre Folding Balance Arm (Short Type)
Carbon Fibre Folding Balance Arm (Long Version)
产品详情
型号 | 类别 | 适用扭矩 | 最大有效载荷 | 上下行程 | 横向半径 |
WLS-C-ZD-F010S-R(T) | 基本款 | ≤10N.m | 50N | 300mm | R570mm |
WLS-C-ZD-F040S-R(T) | 短款 | ≤40N·m | 90N | 500mm | R660mm |
WLS-C-ZD-F040L-R(T) | 长款 | ≤40N·m | 90N | 500mm | R1050mm |
WLS-C-ZD-F080S-R(T) | 短款 | ≤80N·m | 90N | 500mm | R660mm |
WLS-C-ZD-F080L-R(T) | 长款 | ≤80N·m | 90N | 500mm | R1050mm |
WLS-C-ZD-F150S-R(T) | 短款 | ≤150N-m | 150N | 500mm | R750mm |
WLS-C-ZD-F150L-R(T) | 长款 | ≤150N-m | 150N | 500mm | R1150mm |
